Special equipment

SONOREX ultrasonic baths for special cleaning tasks - Many of the cleaning baths presented here were developed at the suggestion of or in cooperation with our customers.

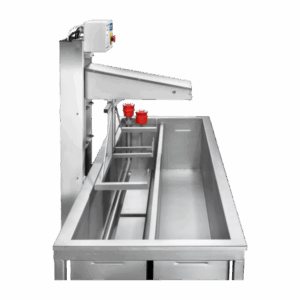

SONOREX TECHNOLOGY L 220 / L 320

Double tray for cleaning and rinsing in one appliance
Mobile double tank for cleaning and rinsing long shafts, pipes and spindles, as well as blinds, lamp louvres, reflectors, healds, preforms or slats.

Additional equipment:

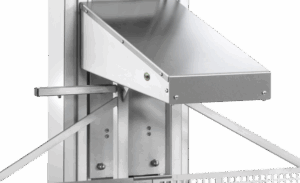

Lifting device for lifting the basket in and out with oscillation to increase the cleaning effect, as well as suspension heating with temperature controller.

Stainless steel double bathtub with separately erectable Generator z. e.g. for the cleaning of

  • Blinds
  • Lamp louvres
  • Reflectors
  • Healds
  • Preforms
  • Slats

Welded cleaning tray

Extra long oscillating tank

Level marking

Welded drain, per tray

Extra narrow oscillating tank

Stainless steel double tray

Regular and professional cleaning with ultrasound guarantees gentle care to extend the service life of the parts to be cleaned. There is no need for time-consuming manual wiping, rubbing and brushing. The ultrasound generates microscopically small bubbles in the cleaning fluid. These implode and remove all dirt from the objects like an "electronic brush". The cleaning effect of the ultrasound is intensified by the oscillating movement of the lifting device. The 2nd chamber is used for subsequent rinsing with clear water.

Push-button for two-handed operation
Tub 1 Tub2
SONOREX TECHNOLOGY LB 320.3
16.597,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

SONOREX TECHNOLOGY LB 220.3
16.383,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

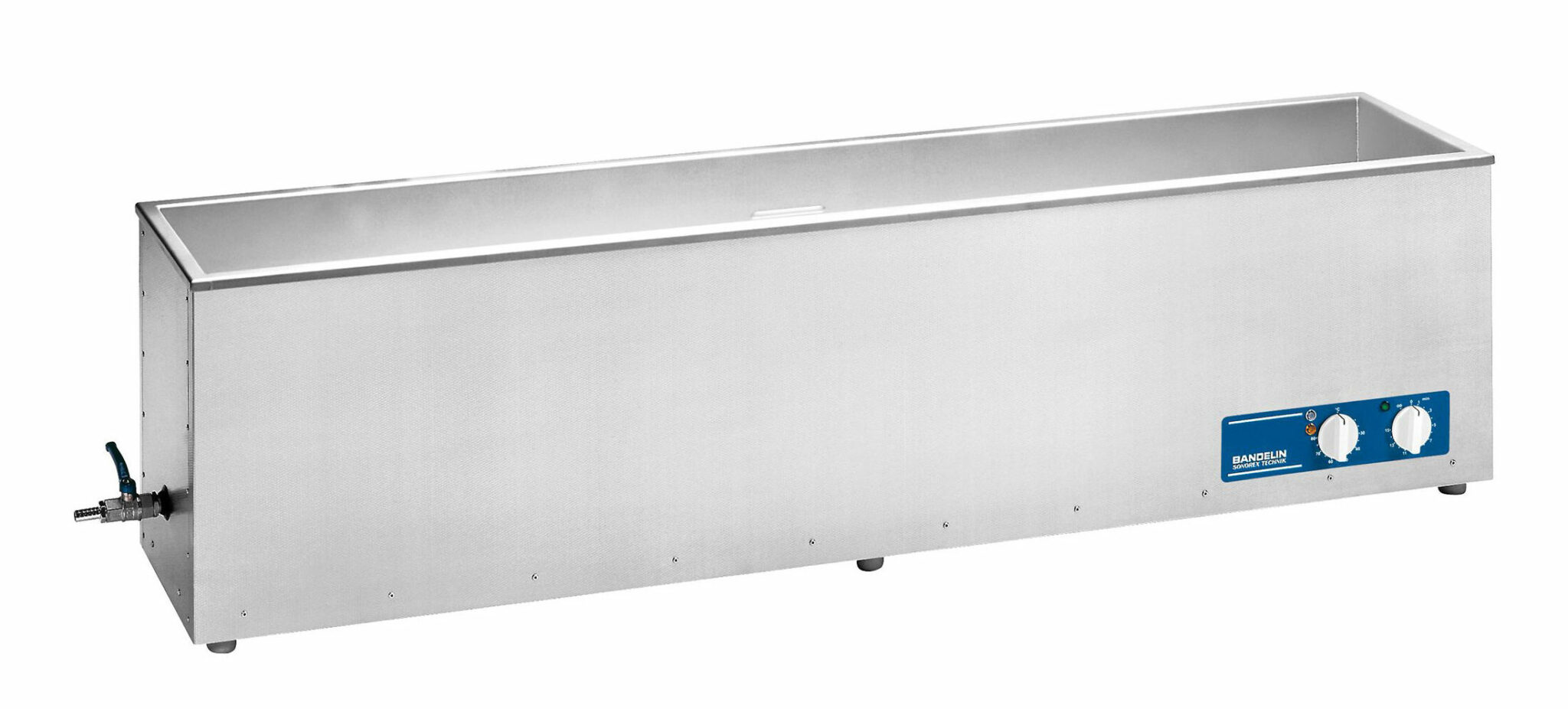

SONOREX TECHNOLOGY RL 70.2 UH

Ultrasonic bath - Extra long and narrow

Extra-long ultrasonic bath. Excellent for cleaning long parts such as pipes, profiles, gang saw blades and long planing knives.

SONOREX TECHNOLOGY W 65 / W 300

Ultrasonic baths - especially for shipping

The ultrasonic bath with a high freeboard prevents the bath liquid from spilling over, even with strong movement, and is therefore particularly suitable for shipping. Due to the deep oscillating tank, the device can also be used to clean particularly large parts by filling the bath higher.

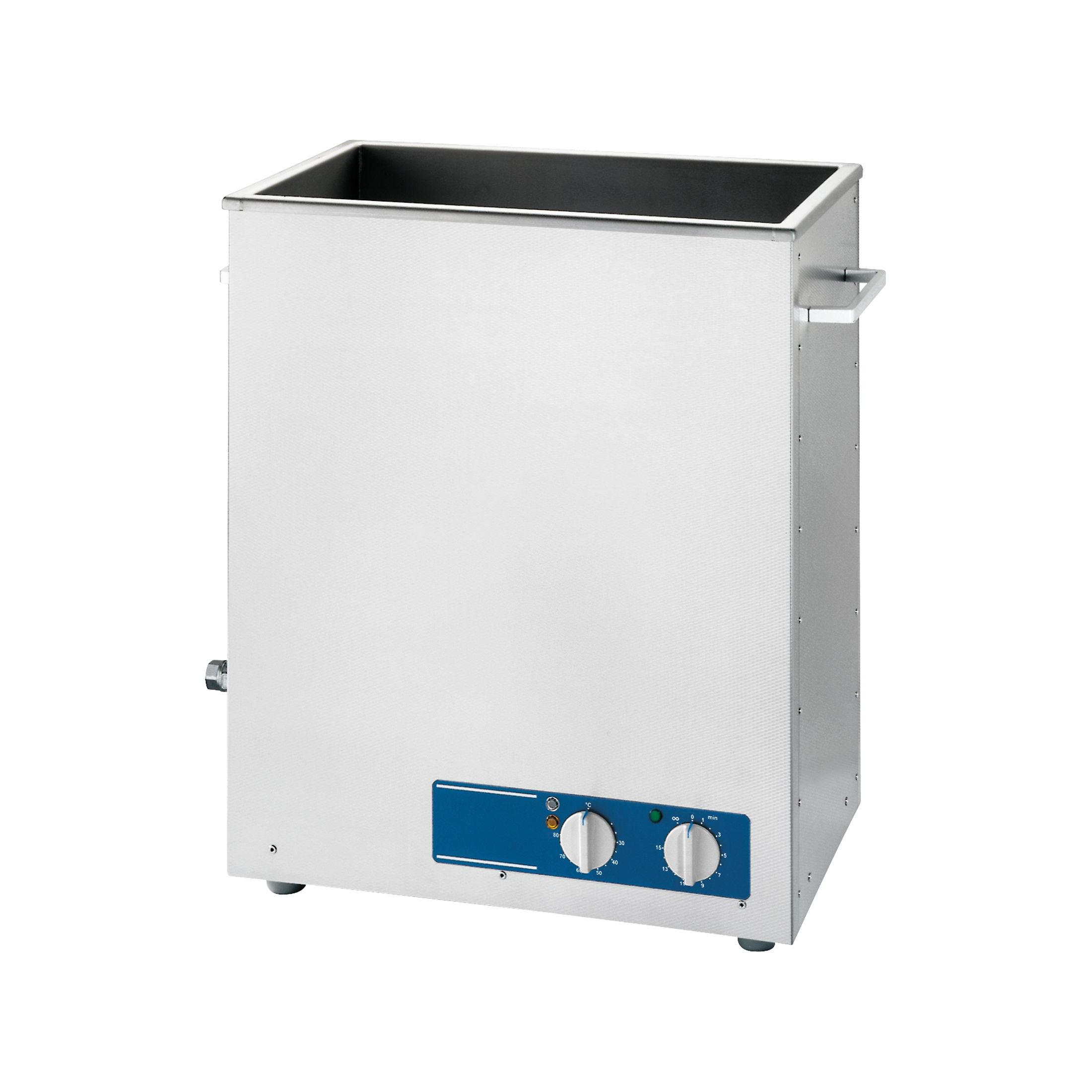

Sonorex W 65
Sonorex W 300
SONOREX TECHNOLOGY W 300
14.032,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

SONOREX TECHNOLOGY W 300
14.032,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

SONOREX TECHNOLOGY RL 70.2 UH
6.107,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

SONOREX TECHNOLOGY W 65
3.952,00

excl. 19 % VAT, plus. ShippingStandard shipping Germany: up to 30 kg: 6,90 EUR; 30-50 kg: 49,00 EUR; from 50 kg: 99,00 EUR; Hazardous goods shipping Germany: plus 11,50EUR
(Prices only for Germany and traders)

Bandelin Electronic

Quality since 1955

We - a Berlin-based family business in its third generation - specialise in the development, manufacture and distribution of ultrasonic devices, corresponding accessories and application-specific cleaning and disinfection preparations. The high vertical range of manufacture, a modern production facility and motivated employees distinguish us and are guarantors for constantly new quality products.
