SONOREX smart ST 1028 H Ultrasonic bath with heating

Description

High-performance ultrasonic cleaner with heating for use in the practice, laboratory and workshop.

The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.

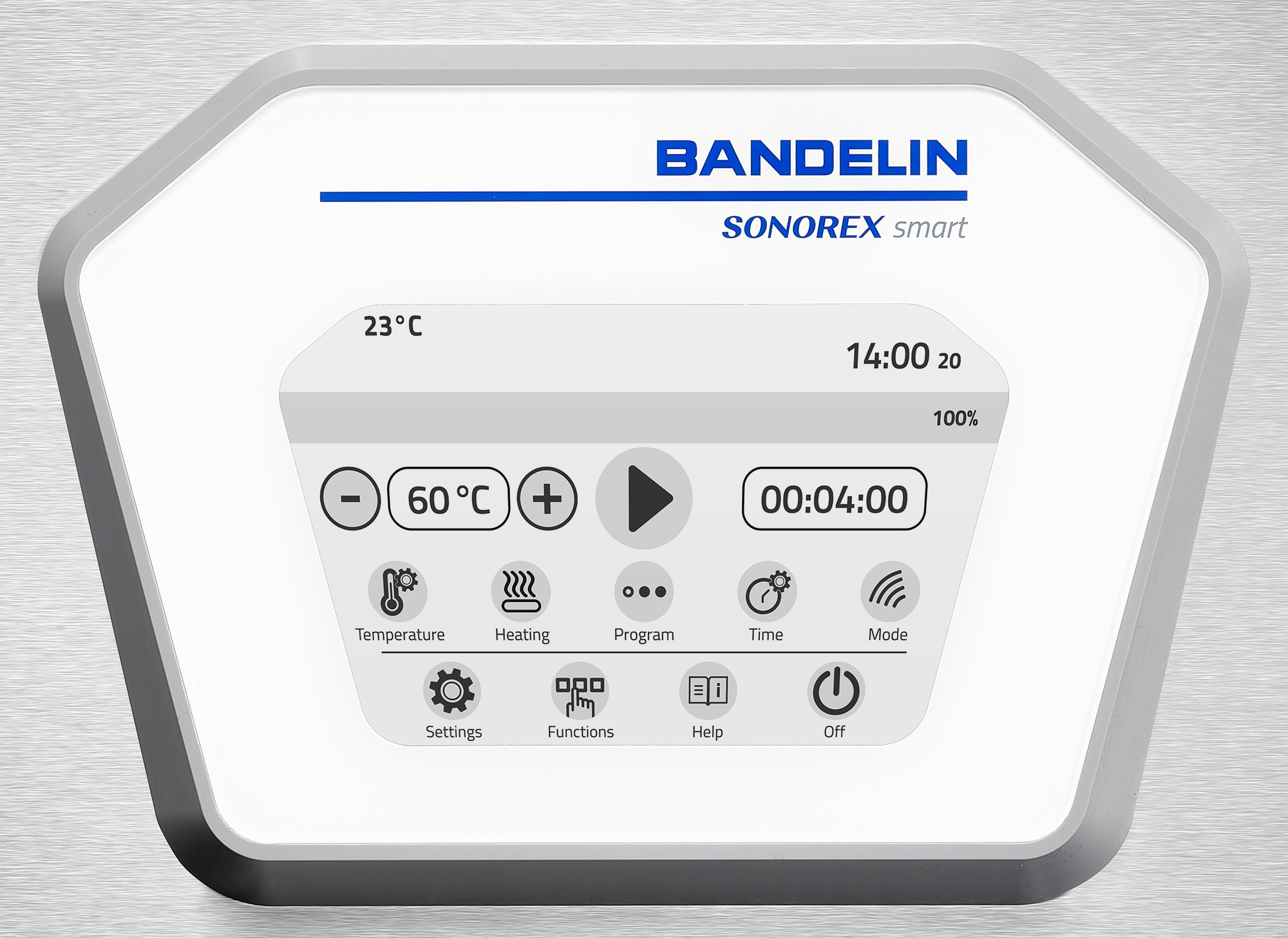

An intuitive touchscreen is used to easily set and monitor all parameters such as ultrasonic power, cleaning time and temperature. Sonication intervals and temperature limits can be set.

The internal programme memory enables reliable reproducibility of your validated sample preparation processes.
The fully automatic SweepTec function prevents standing waves in the ultrasonic field and achieves particularly even cleaning. The degassing function (Degas), which can be activated at the beginning of the cleaning process, further enhances the cleaning effect of the ultrasound.

For optimally coordinated ultrasonic cleaning, matching baskets, lids and cleaning and disinfection concentrates are available as accessories.

Also available on request as a variant with 115 V (order number 7108-1), Swiss plug (order number 7108-CH) or British plug (order number 7108-GB).

Zusätzliche Informationen

Weight	17,9 kg
Order number	7108
Internal dimension L [mm]	500
Internal dimension B [mm]	300
Inner dimension T [mm]	200
Capacity [l]	28,0
Work content [l]	19,0
Level indicator	yes
Ultrasonic tank material	Stainless steel 1.4301
Ultrasonic tank thickness [mm]	1,0
Procedure	Kugelhahn G ½ mit 50 cm Schlauch, an der linken Seite
Ultrasonic peak power [W]	1200
Nominal ultrasonic power [W]	300
Power setting	10 100
Ultrasonic frequency [kHz]	40
Operation	Touchscreen
Time setting [min]	1 s to 8 hours in 1 s increments
Pulsation times	1 s 60 s
Temp. set. (C)	20 80
Heat output [W]	1300
Operating voltage [V]	230 V~ (± 10 %), 50/60 Hz
Mains cable	2 m, fixed to the device
Outer dimension L [mm]	535
External dimension B [mm]	325
Outer dimension H [mm]	400
Housing material	Stainless steel 1.4301
Degree of protection housing	IP 32
Handles	on the sides
CE conformity	Medical Devices Class I 2017 / 745 / EU, Low Voltage Directive 2014 / 35 / EU, EMC Directive 2014 / 30 / EU, RoHS Directive 2011 / 65 / EU
Packaging L [mm]	660
Packaging B [mm]	455
Packaging H [mm]	460

Instructions for use

Here you will find the current instructions for use for the current product. For old products, please use the instructions for use search under https://bandelin.com/manuals/
