Generators
Microprocessor-controlled generators LG supply the required HF power up to 9000 watts for the operation of ultrasonic oscillating systems and ultrasonic cleaning devices. As standard, the connection is made with Quick Connect technology. All modules in the LG generator can be conveniently inserted from the front without any conversions or reprogramming.
Module generators LG
The microprocessor-controlled ultrasonic generators LG deliver HF power up to max. 9.0 kW at 25 kHz or 40 kHz. The selection of the generator with power and modules depends on the total output of the ultrasonic the ultrasonic oscillating systems to be connected and the desired controllability of the application. At the heart of the ultrasonic generators are power modules up to 1.5 kW with control of all operating parameters by a microprocessor on board.

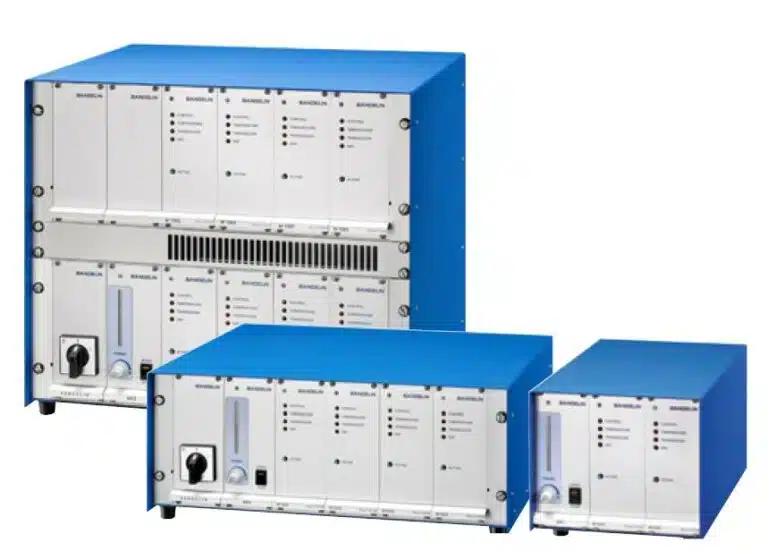

Front, from left to right: LG 4004 F - 4.0 kW and LG 3020 T - 3.0 kW
Operating and power modules for LG generators

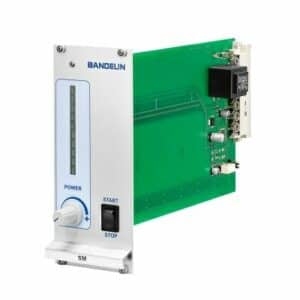

SM 3 control module
Stepless adjustment of the target power 10-100% via rotary control & START-STOP switch for switching the HF output on/off
Processor module PRO 3
Individual programming of individual power modules, degassing function & error display
Power modules M 1003 & M 1503
LEDs signal the operating status, module switch for individual activation of power modules, power stability ± 2% and open-circuit, short-circuit and overload-proof. overload-proof
Flexible
To increase the generator output, additional power power modules are simply inserted into free slots slots. Mixed configurations with modules of different frequencies (25 or 40 kHz) and outputs are possible.
Modular
All modules of the LG generator can be conveniently inserted and replaced from the front. The settings are made via the SM 3 or PRO 3 operating modules. The power is output via the power modules M.
Communicative
The rear connections for the remote control and the RS 232 serial interface allow the generators to be integrated the generators into higher-level monitoring and control systems.
Compact generators TG 1503 and
TG 3003 - especially for plant engineering
The microprocessor-controlled ultrasonic generators TG 1503 and TG 3003 deliver HF power up to max. 3.0 kW at 25 kHz or 40 kHz, with TG 3003 a mixed configuration is also possible.
The compact design enables installation in a standard control cabinet, and wall mounting is possible using mounting brackets (optional).
Compact generators TG 1503
Dimensions (L × W × H): 250 × 460 × 110 mm
Mains connection: 230 V~ (± 10 %) 50/60 Hz
Compact generators TG 3003
Dimensions (L × W × H): 250 × 460 × 160 mm
Mains connection: 230 V~ (± 10 %) 50/60 Hz
Small generators TG 50 -TG 500 / Z for connection to special equipment
TG generators
HF power up to 500 W
Ultrasonic frequency: 40 kHz or 25 kHz
Mains connection: 230 V~ (± 10 %), 50/60 Hz
Alternatively: 115 V~ (± 10 %), 50/60 Hz
Remote control/control
The generators can be switched on and off with an external control contact via the connection socket on the rear.
FS 7: Remote control cable, 7 m long, with plug on one end
FS 15 L: Remote control with timer 1-15 min and continuous operation, cable with plug, 7 m long
RS 232 interface for PLC or PC
The generator can be integrated into higher-level control and monitoring systems via the interface. The modules are controlled directly by the PLC.Customised equipping with ultrasonic oscillating systems
Tubs, basins, plates, flanges, pipes and other metal assemblies are fitted directly with ultrasonic transducer systems for cleaning purposes or other sonication tasks if the use of immersible transducers or flat transducer plates is not possible. The transducer systems are bonded to the outer surfaces in such a way that the sound effect is directed into the liquid or onto an object in the liquid.
Project planning notes
The intended mounting surfaces must be flat. The power per ultrasonic transducer system is max. 50 watts. The transducer systems can be fitted with an aluminium cover (degree of protection IP 20), which provides protection against contact but not against splash water.
