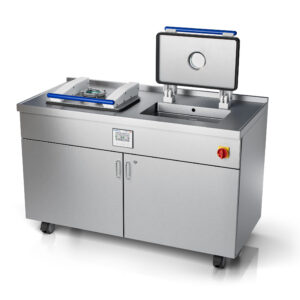

SONOREX CNp 28-2 L double tank ultrasonic bath with power control and pulsed vacuum

Internal dimensions: 510 x 300 x 270 mm

65.300,00 € (plus Shipping & VAT) Commercial customers only

Properties

Ultrasound and vacuum in one unit
For cleaning fine cavities

1 available

Description

Effective cleaning using the CNp process (Cyclic Nucleation Process), a combination of ultrasonic and pulsed vacuum cleaning in one compact unit. For residue-free cleaning of complex components, capillary cavities, hoses or bulk material.
Versatile for cleaning in machining and additive manufacturing, reprocessing of complex laboratory equipment, medical device manufacturing and electronics.
With the compact unit, highly effective cleaning processes can be realised economically even at low throughput rates. The uncomplicated set-up, low-maintenance operation and user-friendly operation make the universal tool even more efficient. Variant with variable power regulation.

Zusätzliche Informationen

Weight 370,0 kg
Order number

7210

Internal dimension L [mm]

510

Internal dimension B [mm]

300

Inner dimension T [mm]

260/280

Capacity [l]

40,0

Work content [l]

28,0

Ultrasonic tank material

Stainless steel 1.4404

Ultrasonic tank thickness [mm]

2,0

Shape of the tub corners

rounded

Procedure

G 1, at the rear

Tub floor

inclined

Ultrasonic peak power [W]

240/480/720/960/1200 W, per tub

Nominal ultrasonic power [W]

60/120/180/240/300 W, per tray

Power setting

20/40/60/80/100

Ultrasonic frequency [kHz]

35

Transducer number Tub bottom

8

Operation

Front panel with touch screen

Time setting [min]

Countdown mode 1-999 sec.

Temp. set. (C)

50-65

Heat output [W]

2600 W, per tub

Operating voltage [V]

400 V~3NPE 50/60 Hz

Mains cable

3 m, fixed to the device

Outer dimension L [mm]

1550

External dimension B [mm]

800

Outer dimension H [mm]

985

Ready to use set

yes

Packaging L [mm]

1650

Packaging B [mm]

1150

Packaging H [mm]

1150

suitable for

CNp


Instructions for use (set)


Data sheet


Brochure/Flyer

suitable
