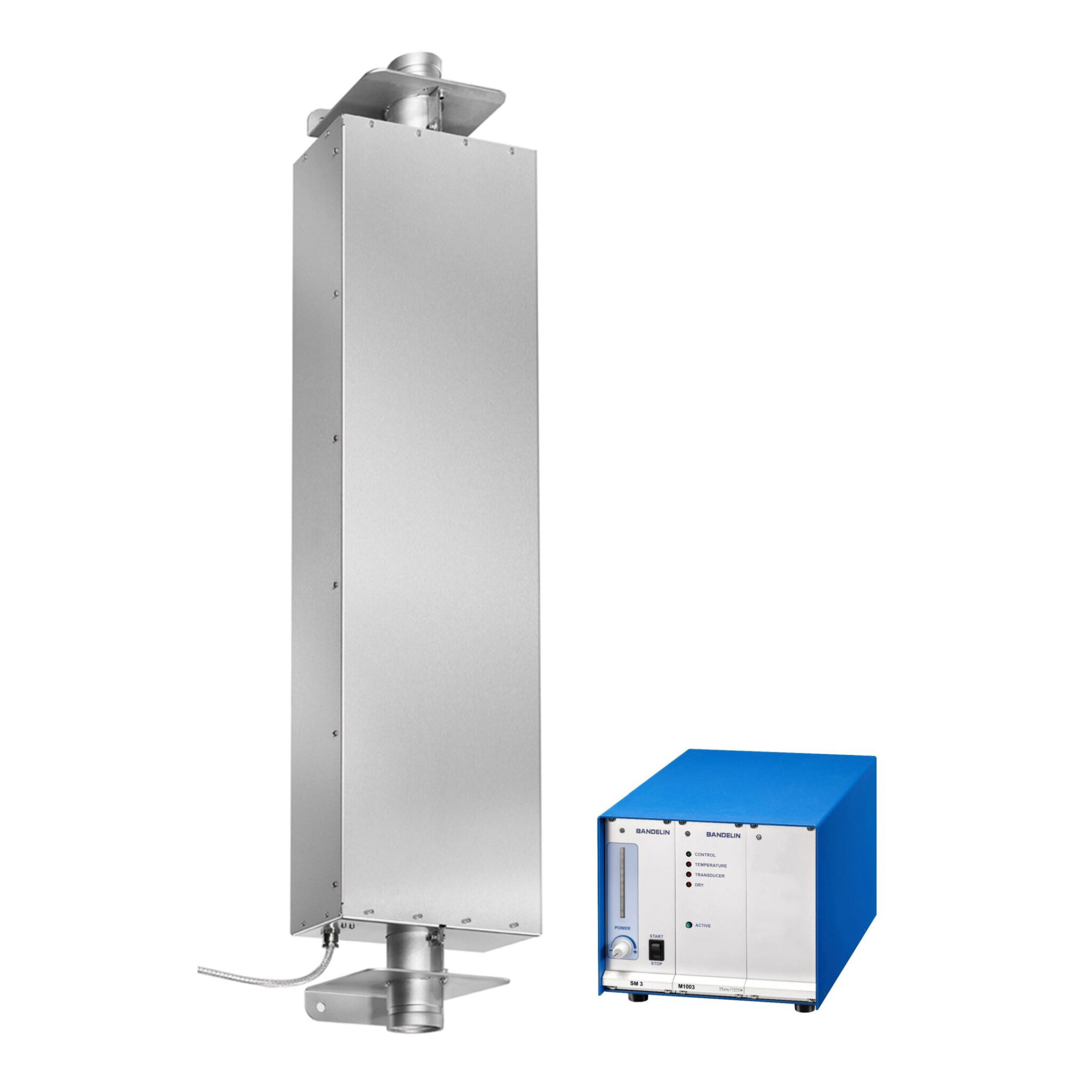

SONOREX TECHNOLOGY SONOBLOC SB 101-2002.01

Sonoreactor, 2000 W, 25 kHz

Händlerdownloads:

15.922,00

(plus VAT. & Shipping)

Properties

High intensity sound field
Insensitive to clogging
Compact design

Description

The BANDELIN tubular reactor enables the flow treatment of high volume flows in process engineering and is also used in wire cleaning. The vibrating systems are mounted on the outside of the reactor tube, which means that there is no need for internals inside the reactor tube. The tubular reactor is therefore particularly insensitive to clogging when sonicating substrates containing solids.

The main fields of application of the BANDELIN tubular reactor are:

- Ultrasonic intensive treatment of filamentous and ribbon-like products
- Support of industrial and biotechnological processes in purification, disintegration, degassing and deagglomeration
- Efficient cleaning of greases, oils, emulsions and/or crack residues during single and multi-wire cleaning
- CO2 degassing from aqueous reactants
- Support of disinfection (bacteria killing) in water and waste water treatment
- Acceleration of disintegration and/or degradation of organic pollutant material in the treatment of sewage sludge
- Disintegration of biogas substrate
- Support for the disinfection of germ- and parasite-contaminated fish-farming recirculating waters
- Dispersing solids in liquids (pharmaceutical production)

The 3-inch tubular reactor was developed for the ultrasonic treatment of high volume flows or substrates with a high solids content. Due to the unique design, there is no need for internals or a change in the cross-section in the reactor, which makes the tubular reactor particularly insensitive to blockages. The BANDELIN tubular reactor is primarily used in biogas plants to increase the biogas yield by comminuting the biogas substrate.

Zusätzliche Informationen

Weight 58 kg
Order number

Installation length [cm]

Flow rate [l/h]

Max. perm. pressure [bar]

Ultraschallnennleistung [W]

Power setting

Ultraschallfrequenz [kHz]

Operating voltage [V]

Außenmaß L [mm]

Außenmaß B [mm]

Außenmaß H [mm]

Degree of protection housing

Verpackung L [mm]

Verpackung B [mm]

Verpackung H [mm]


Brochure

suitable
