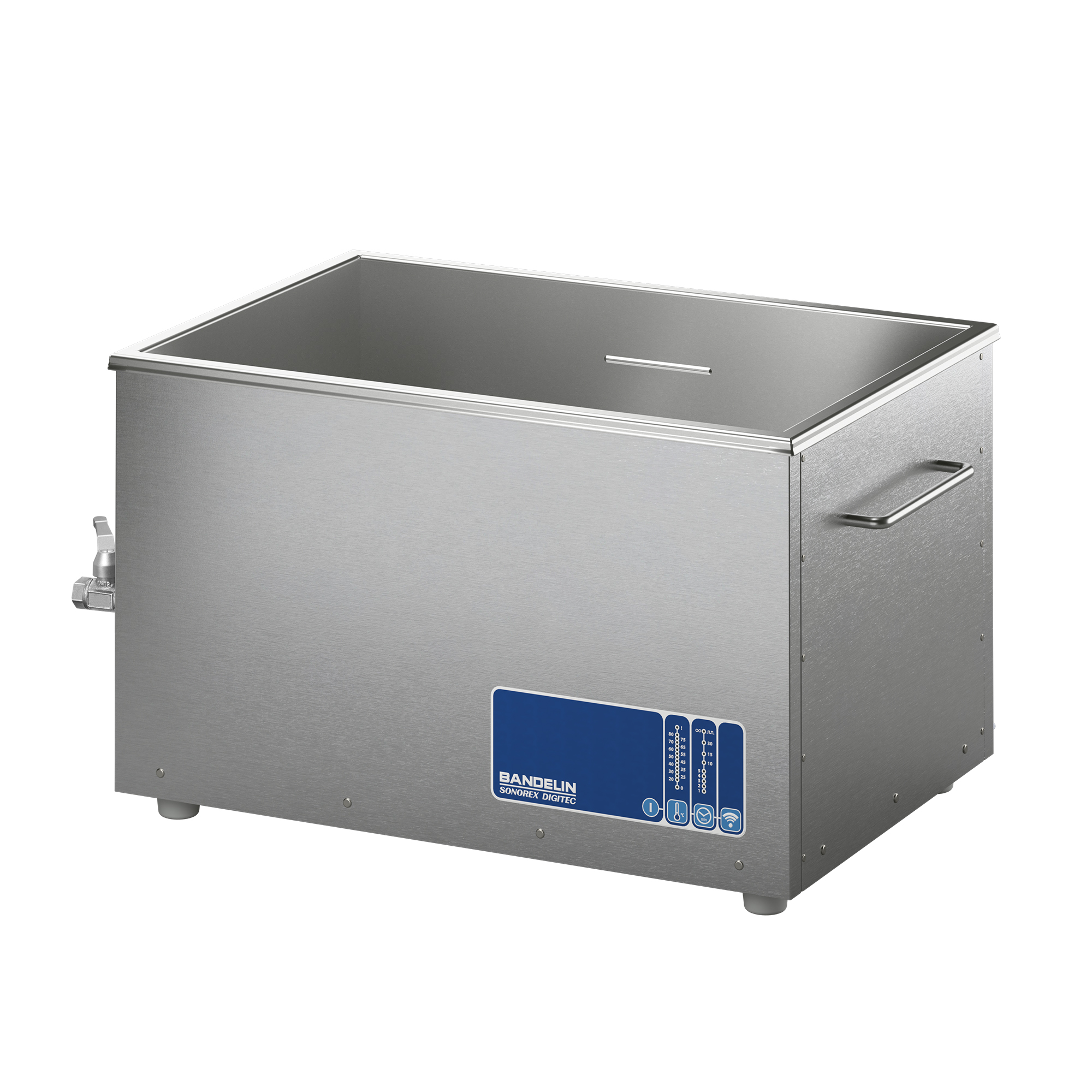

SONOREX DIGITEC DT 1048 H Ultrasonic Bath with Heater

Innenmaße: 600 x 400 x 200 mm

4.237,00  (plus Shipping & VAT) Commercial customers only

Properties

Pulse function
Wipeable operation
SweepTec for homogeneous sound field
Quick degassing function

Description

High-performance ultrasonic cleaner with heating for use in the practice, laboratory and workshop.

The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.

A user-friendly and easy-to-wipe button control is used to easily set the cleaning time and bath temperature.
The display clearly shows the remaining cleaning time and the current set and actual bath temperature.
The fully automatic SweepTec function prevents standing waves in the ultrasonic field and achieves particularly even cleaning. The degassing function (Degas), which can be activated at the beginning of the cleaning process, further enhances the cleaning effect of the ultrasound.

For optimally coordinated ultrasonic cleaning, matching baskets, lids and cleaning and disinfection concentrates are available as accessories.

Zusätzliche Informationen

Weight 52,0 kg
Order number

3273

Internal dimension L [mm]

600

Internal dimension B [mm]

400

Inner dimension T [mm]

200

Capacity [l]

48,0

Work content [l]

32,0

Level indicator

yes

Ultrasonic tank material

Stainless steel 1.4404

Ultrasonic tank thickness [mm]

2,0

Procedure

Kugelhahn G ¾ mit 50 cm Schlauch, an der linken Seite

Ultrasonic peak power [W]

1280

Nominal ultrasonic power [W]

320

Ultrasonic frequency [kHz]

35

Operation

Keys

Time setting [min]

- 1, 2, 3, 4, 5, 10, 15, 30 min, ± 5 % - continuous operation (∞)

Temp. set. (C)

20-80

Heat output [W]

1450

Operating voltage [V]

230 V~ (± 10 %), 50/60 Hz

Mains cable

2 m, fixed to the device

Outer dimension L [mm]

640

External dimension B [mm]

440

Outer dimension H [mm]

400

Housing material

Stainless steel 1.4301

Degree of protection housing

IP 33

Handles

on the sides

CE conformity

Medical devices Class I 2017 / 745 / EU, Low Voltage Directive 2014 / 35 / EU EMC Directive 2014 / 30 / EU RoHS Directive 2011 / 65 / EU

Packaging L [mm]

1200

Packaging B [mm]

800

Packaging H [mm]

740

Instructions for use

Here you will find the current instructions for use for the current product. For old products, please use the instructions for use search under https://bandelin.com/manuals/


Data sheet


Dimension sheet


Brochure/Flyer
