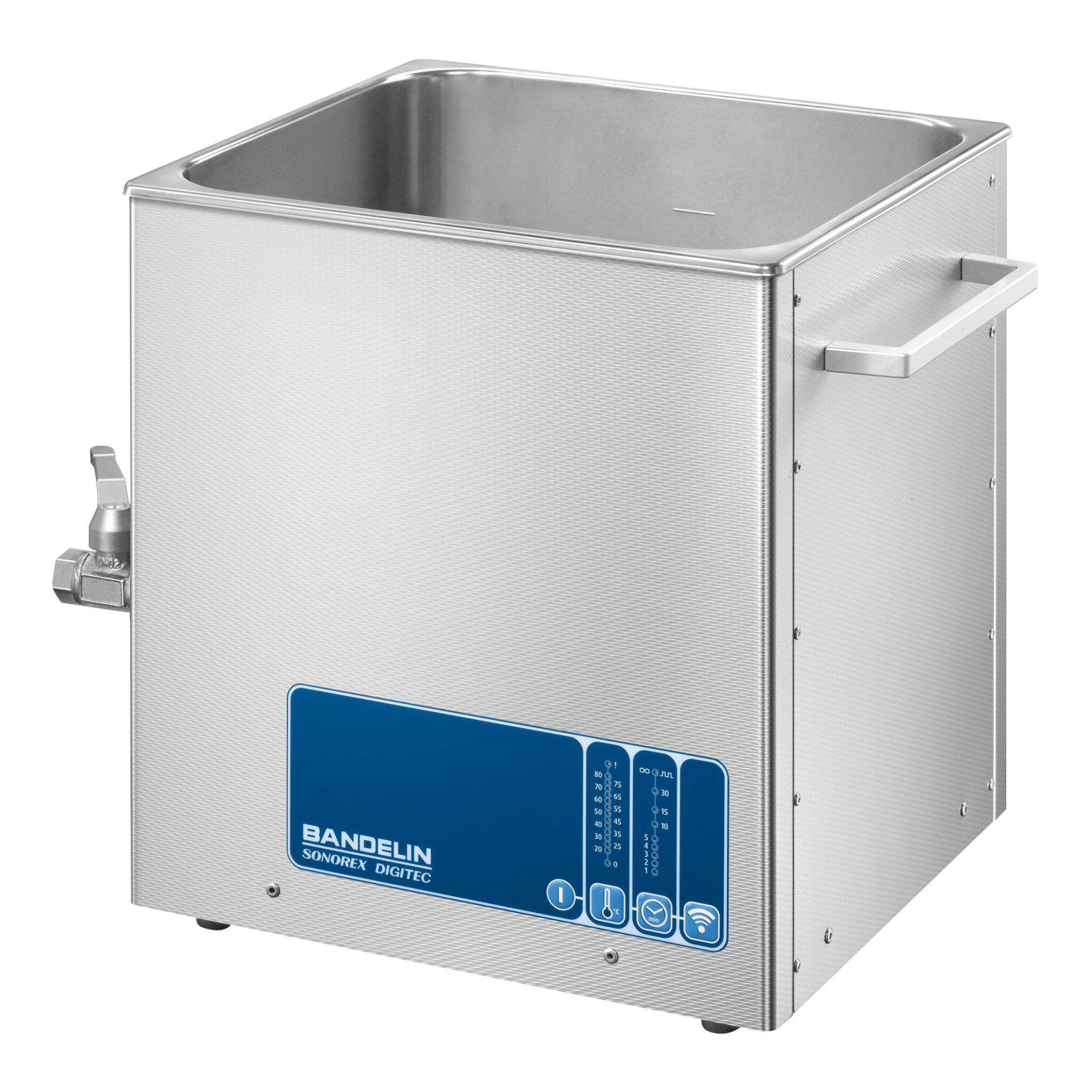

SONOREX DIGITEC DT 514 BH Ultrasonic bath with heating

Description

High-performance ultrasonic cleaner with heating for use in the practice, laboratory and workshop.

The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.

A user-friendly and easy-to-wipe button control is used to easily set the cleaning time and bath temperature.

The display clearly shows the remaining cleaning time and the current set and actual bath temperature.
The fully automatic SweepTec function prevents standing waves in the ultrasonic field and achieves particularly even cleaning. The degassing function (Degas), which can be activated at the beginning of the cleaning process, further enhances the cleaning effect of the ultrasound.

For optimally coordinated ultrasonic cleaning, matching baskets, lids and cleaning and disinfection concentrates are available as accessories.

Zusätzliche Informationen

Weight	11,8 kg
Order number	3216
Internal dimension L [mm]	325
Internal dimension B [mm]	300
Inner dimension T [mm]	200
Capacity [l]	18,7
Work content [l]	12,5
Level indicator	yes
Ultrasonic tank material	Stainless steel 1.4301
Ultrasonic tank thickness [mm]	1,0
Procedure	Kugelhahn G ½ mit 50 cm Schlauch, an der linken Seite
Ultrasonic peak power [W]	860
Nominal ultrasonic power [W]	215
Ultrasonic frequency [kHz]	35
Operation	Keys
Time setting [min]	1, 2, 3, 4, 5, 10, 15, 30 min, ± 5 % Dauerbetrieb (?)
Temp. set. (C)	20 80
Heat output [W]	600
Operating voltage [V]	230 V~ (± 10 %), 50/60 Hz
Mains cable	2 m, fixed to the device
Outer dimension L [mm]	355
External dimension B [mm]	325
Outer dimension H [mm]	385
Housing material	Stainless steel 1.4301
Degree of protection housing	IP 33
Handles	on the sides
CE conformity	Medical Devices Class I 2017 / 745 / EU, Low Voltage Directive 2014 / 35 / EU, EMC Directive 2014 / 30 / EU, RoHS Directive 2011 / 65 / EU
Packaging L [mm]	475
Packaging B [mm]	445
Packaging H [mm]	465

Instructions for use

Here you will find the current instructions for use for the current product. For old products, please use the instructions for use search under https://bandelin.com/manuals/
