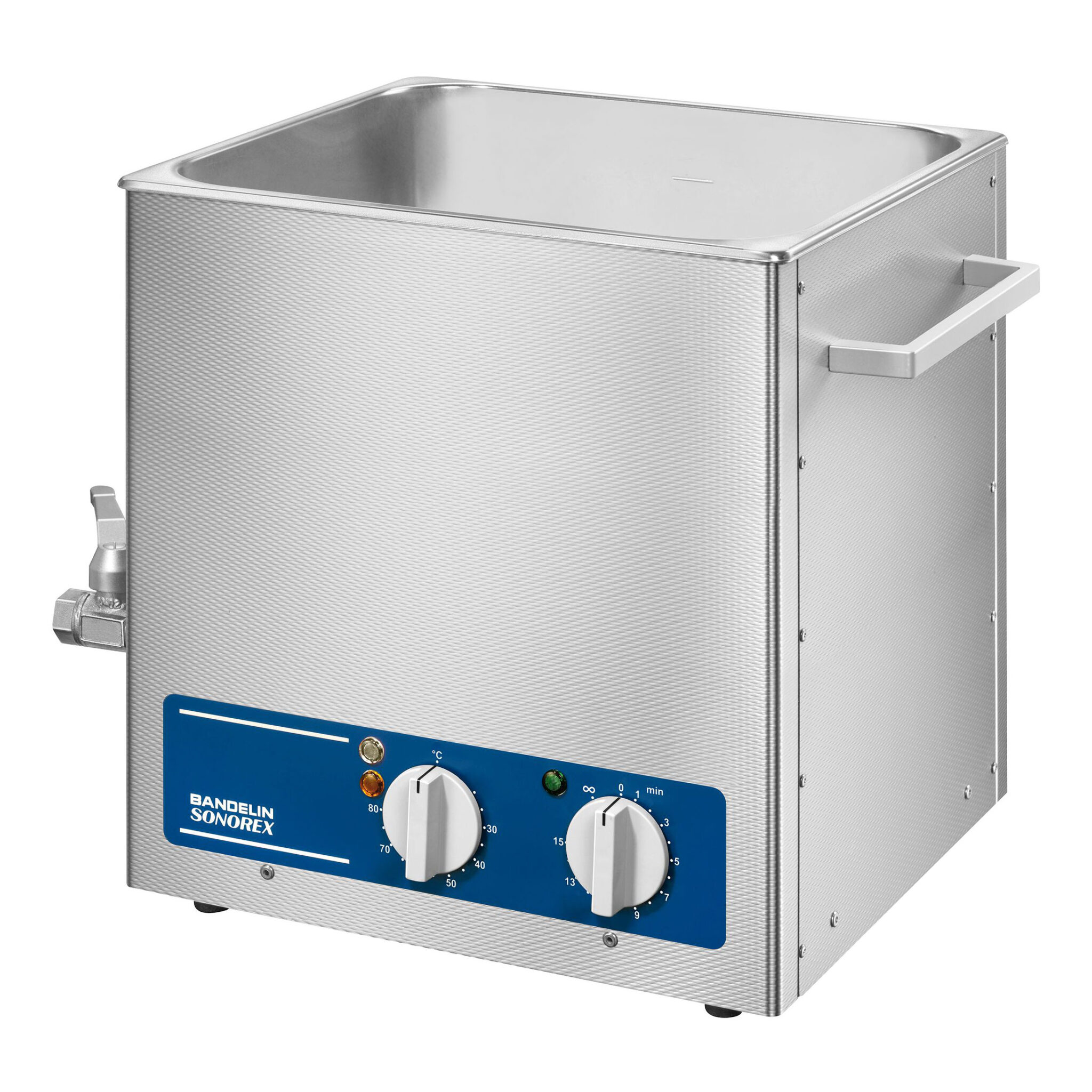

SONOREX SUPER RK 514 BH Ultrasonic Bath with Heater

Internal dimensions: 325 x 300 x 200 mm

Dealer downloads:

2.351,00  (plus Shipping & VAT) Commercial customers only

Properties

Simple operation
SweepTec for homogeneous sound field
Suitable for cleanrooms
Protection class IP 32

More than 10 available

Description

High-performance ultrasonic cleaner with heating for use in the practice, laboratory and workshop.
The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.
A user-friendly rotary handle control is used for easy setting of the cleaning time and bath temperature.

For optimally coordinated ultrasonic cleaning, matching baskets, lids and cleaning and disinfection concentrates are available as accessories.

Zusätzliche Informationen

Weight 11,9 kg
Order number

263

Internal dimension L [mm]

325

Internal dimension B [mm]

300

Inner dimension T [mm]

200

Capacity [l]

18,7

Work content [l]

12,5

Level indicator

yes

Ultrasonic tank material

Stainless steel 1.4301

Ultrasonic tank thickness [mm]

1,0

Procedure

Ball valve G ½, on the left-hand side

Ultrasonic peak power [W]

860

Nominal ultrasonic power [W]

215

Ultrasonic frequency [kHz]

35

Operation

Rotary handle

Time setting [min]

- 1 - 15 min, ± 5 % - Continuous operation (∞)

Temp. set. (C)

30-80

Heat output [W]

600

Operating voltage [V]

230 V~ (± 10 %), 50/60 Hz

Mains cable

2 m, fixed to the device

Outer dimension L [mm]

355

External dimension B [mm]

325

Outer dimension H [mm]

385

Housing material

Stainless steel 1.4301

Degree of protection housing

IP 32

Handles

on the sides

CE conformity

Medical Devices Class I 2017 / 745 / EU, Low Voltage Directive 2014 / 35 / EU, EMC Directive 2014 / 30 / EU, RoHS Directive 2011 / 65 / EU

Packaging L [mm]

475

Packaging B [mm]

445

Packaging H [mm]

465

Instructions for use

Here you will find the current instructions for use for the current product. For old products, please use the instructions for use search under https://bandelin.com/manuals/


Data sheet


Dimension sheet


Brochure/Flyer

suitable
