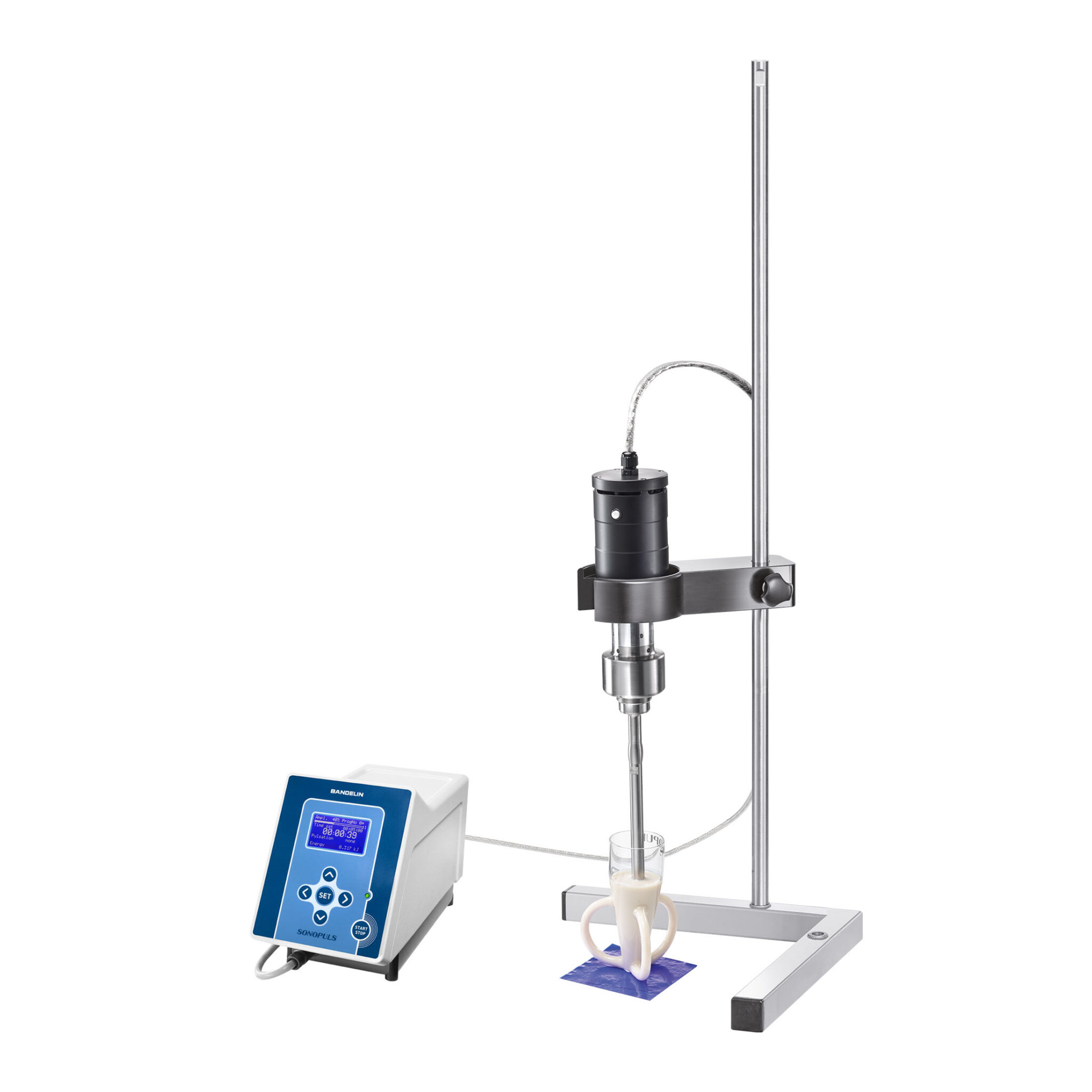

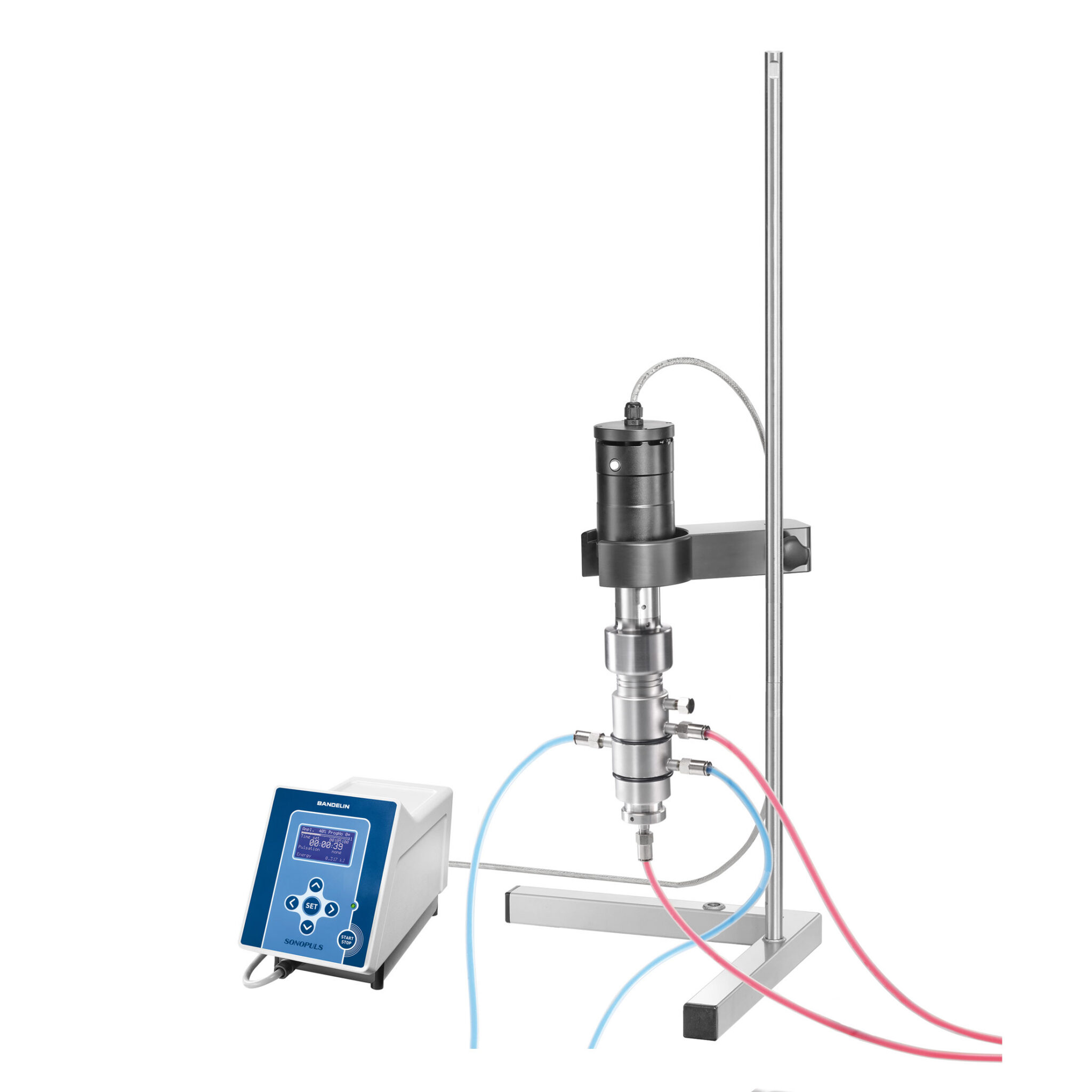

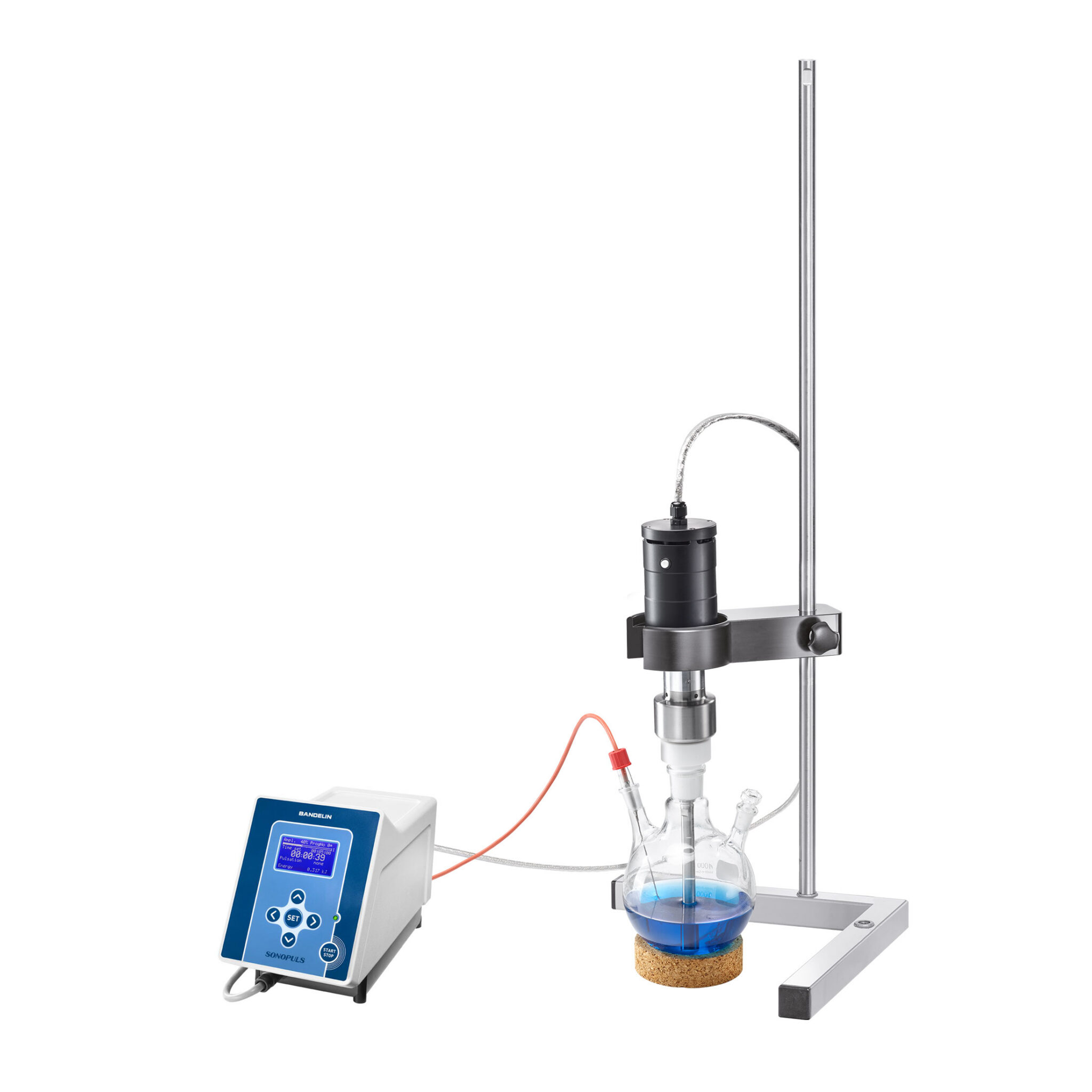

SONOPULS HD 4200

Description

Ultrasonic homogeniser for volumes from 5 - 1000 ml

Ready-to-use basic equipment for volumes from 20 ml to 900 ml consisting of:
- Ultrasound Ultrasound Generator GM 4200
- Ultrasonic transducer UW 200
- Step horn SH 200 G
- Titanium disc TT 213, Ø 13 mm (for volumes 20-900 ml)
- Including tools for mounting the probes

SONOPULS homogenisers with amplitude control 10 to 100 % and actual value display, pulsation, AMPLICHRON® circuit (guarantees constant amplitude independent of changing conditions), integrated timer, remote controllable. All units have CE marking.

Fields of application:
- Disruption of cells, bacteria, viruses, tissue (cell disruption)
- Production of finest emulsions
- Homogenising substances
- Degassing of liquids
- Sample preparation for particle size analysis
- Acceleration of chemical reactions

Available probes Ø: 3 / 4.5 / 6 / 9 / 13 / 16 / 19 / 25 mm

Zusätzliche Informationen

Weight	6,525 kg
Order number	4200
Sound volume [l]	20-900
Nominal ultrasonic power [W]	200
Ultrasound frequency [kHz]	20
Sonotrode diameter [mm]	13
Probe length [mm]	5
Time setting [min]	99 h: 59 min: 59 s or continuous operation
Pulsation times	Working intervals 0.2-600 s: Rest intervals 0.3-600 s
Connection step horn	M 10
Energy display	in kJ
Amplitude 4100 [micrometer]	80
Amplitude 4200 [micrometer]	128
Outer dimension length [mm]	150
Outer dimension width [mm]	220
Outer dimension height [mm]	335
Ready to use set	yes
Packing Length [mm]	570
Packing Width [mm]	270
Packaging height [mm]	515
